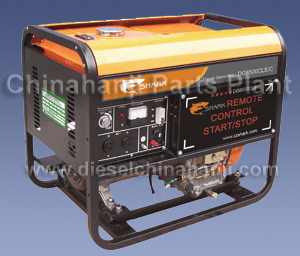

| DG6500CL -- Specifications |
| Rated frequency (Hz) |
50 |
| Rated voltage (V) |
230 |
| Rated current (A) |
19.57 |
| Rated output power (KVA) |
4.5 |
| Rated rotation speed (rpm) |
3000 |
| DC output |
12V8.3A |
| Power factor (cosφ) |
1.0 |
| Phase number |
Single phase |
| Noise level [dB(A)@7m] |
84-85 |
| Overall dimension (L×M×H)[mm(in)] |
660×470×565 (25.98×18.50×22.24) |
| Dry weight [kg(lbs.)] |
100(220) |
| Structure type |
Open-frame type |
| Coupling mode |
5.0 |
| Engine model |
SH186FA |
| Engine type |
Single cylinder,4-stroke,air-cooled,direct injection,diesel engine |
| Displacemen [ml] |
418 |
| Compression ratio |
19:1 |
| Rated power [KW(Hp)/rpm] |
6.0(8.00)/3000 |
| Starting system |
recoil starter |
| Rotation dircetion (View from flywheel) |
Clockwise |
| Fule |
0#(summer)-10#(winter) light diesel oil |
| Lube |
SAE10W30 (above CC grade) |
| Low oil pressure alert system |
With |
