Engine Series >> 4JB104

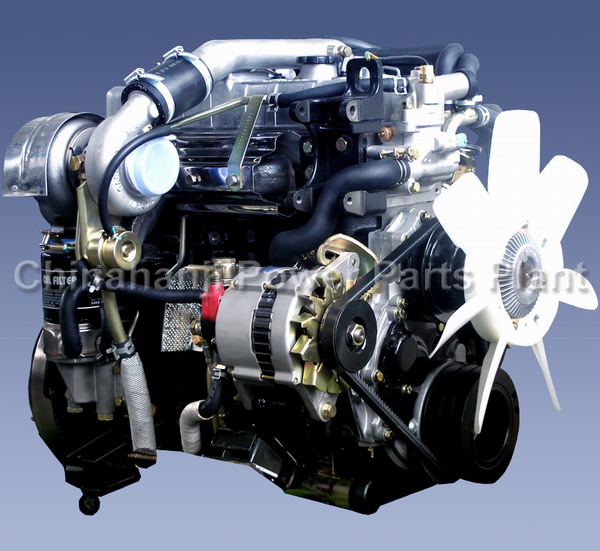

Putian ChinaHanji Power Limited,Co main tech data for diesel engine#4JB1
Model Ser. 4JB1 Nature
inspiration engine
4JB1 supercharged
engine
4JB1 supercharged
/O2 engine
4JB1 Turbo-charged
Center cold Altogether
axle engine
Inlet Method Nature inspiration supercharged supercharged/OII Turbo-charged Center cold Altogether axle
Diesel Engine Model oil-cooled,four-stroke, in-line,valve in-head oil-cooled,four-stroke, in-line,valve in-head oil-cooled,four-stroke, in-line,valve in-head oil-cooled,four-stroke,in-line,supercharged,center Leng,common-railed
Number of Cylinders 4 4 4 4
Bore and Stroke 93102 93102 93102 93102
shape size(L*W*H)mm 734612682 742634718 742634718 742634718
New Weight(kg) 224 230 230 250
Exhaust Volume (cc) 2.771 2.771 2.771 2.771
compression ratio 18.2 18.2 18.2 17.2
fuel supply mode direct injection direct injection direct injection direct injection
Lubrication Method The forced circulation splashes duplicate is suitable The forced circulation splashes duplicate is suitable The forced circulation splashes duplicate is suitable The forced circulation splashes duplicate is suitable
Cooling Method sealed pressed circulation sealed pressed circulation sealed pressed circulation sealed pressed circulation
Starting Method electric electric electric electric
EG stop mode fuel control systme fuel control systme fuel control systme fuel control systme
output power/speed(kW/r/min) 57/3600 68/3600 68/3600 85/3600
Maximum Torque(Nm/r/min) 172/2000 210/2100 210/2100 285/2100
idle speed(r/min) 75050 75050 75050 75050
maximum no load governed speed(r/min) 4200 4200 4200 4200
Min fuel comsumption on Full load(g/kWh) 224 230 230 250
Temperature of cold start -25 -25 -25 -25
Temperature of exhaust <600 <600 <600 <600
noise Db(A) 106 106 106 100
