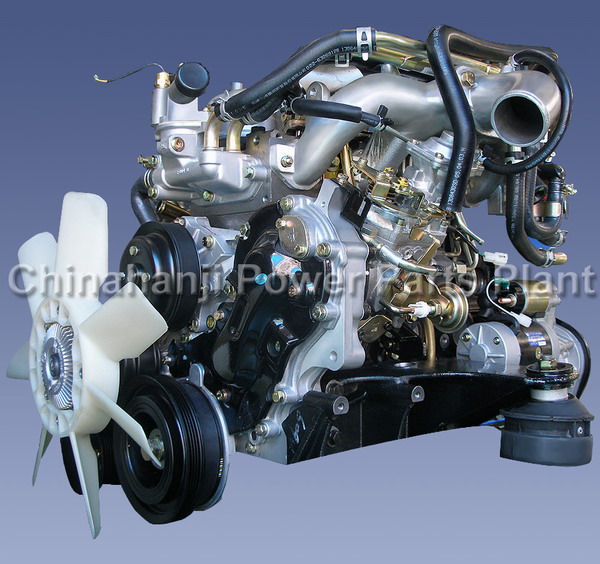

Putian ChinaHanji Power Limited,Co main tech data for diesel engine#4JB1 |
Model Ser. |
4JB1 Nature inspiration engine |
4JB1 supercharged engine |
4JB1 supercharged /O2 engine |
4JB1 Turbo-charged Center cold Altogether axle engine |
Inlet Method |
Nature inspiration |
supercharged |
supercharged/OII |
Turbo-charged Center cold Altogether axle |
Diesel Engine Model |
oil-cooled,four-stroke, in-line,valve in-head |
oil-cooled,four-stroke, in-line,valve in-head |
oil-cooled,four-stroke, in-line,valve in-head |
oil-cooled,four-stroke,in-line,supercharged,center Leng,common-railed |
Number of Cylinders |
4 |
4 |
4 |
4 |
Bore and Stroke |
93102 |
93102 |
93102 |
93102 |
shape size(L*W*H)mm |
734612682 |
742634718 |
742634718 |
742634718 |
New Weight(kg) |
224 |
230 |
230 |
250 |
Exhaust Volume (cc) |
2.771 |
2.771 |
2.771 |
2.771 |
compression ratio |
18.2 |
18.2 |
18.2 |
17.2 |
fuel supply mode |
direct injection |
direct injection |
direct injection |
direct injection |
Lubrication Method |
The forced circulation splashes duplicate is suitable |
The forced circulation splashes duplicate is suitable |
The forced circulation splashes duplicate is suitable |
The forced circulation splashes duplicate is suitable |
Cooling Method |
sealed pressed circulation |
sealed pressed circulation |
sealed pressed circulation |
sealed pressed circulation |
Starting Method |
electric |
electric |
electric |
electric |
EG stop mode |
fuel control systme |
fuel control systme |
fuel control systme |
fuel control systme |
output power/speed(kW/r/min) |
57/3600 |
68/3600 |
68/3600 |
85/3600 |
Maximum Torque(Nm/r/min) |
172/2000 |
210/2100 |
210/2100 |
285/2100 |
idle speed(r/min) |
75050 |
75050 |
75050 |
75050 |
maximum no load governed speed(r/min) |
4200 |
4200 |
4200 |
4200 |
Min fuel comsumption on Full load(g/kWh) |
224 |
230 |
230 |
250 |
Temperature of cold start |
-25 |
-25 |
-25 |
-25 |
Temperature of exhaust |
<600 |
<600 |
<600 |
<600 |
noise Db(A) |
106 |
106 |
106 |
100 |
